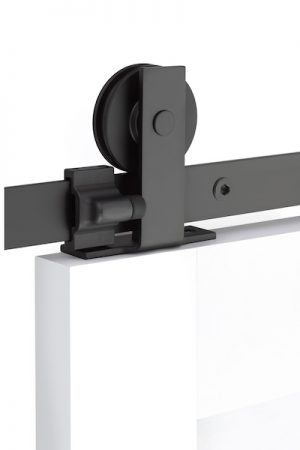

Emtek Modern Rectangular Face Mount Barn Door Hardware


Choose Emtek’s flat-track kits for a spiffy modern industrial touch, all the while keeping the classic farmhouse aesthetic. Emtek tracks are rated up to 400 lbs. Optional Soft Close is available.

Questions? Call Specialty Doors at 1-866-815-8151 for direct support and custom orders.

Door/Hardware Inquiry

Fill out the form below if you have a question regarding this product and we'll respond as soon as possible.


Hardware Features

  • 1/4″ Thick Heavy-Duty sliding track system, rated up to 400 lbs.
  • Large 3 3/4″ diameter wheels with ABEC-rated sealed ball bearings and nylon roller insert — for smooth operation
  • Anti-Jump mechanism for safe operation and easy installation
  • Adjustable Track Stops
  • Interlocking Post and Spacers accommodates range of door thicknesses and clearance, providing ease of installation

Hardware Options

  • Includes 1 pair Hangers with Wheels, Stops, Fasteners, Anti-Jump Mechanism, and Floor Guide
  • Available track lengths: 5′, 6’6″, 8′, 10′, 13′, and 16′
  • Additional hanger kit available for double door (DD) application
  • Soft Open/Close Kit optional
  • The wall or structure that your system will be mounted on must be designed to support a maximum door weight of 400 lbs.

Questions? Call 1-866-815-8151 for direct support and custom orders.

Additional information


Country of Origin

Proudly Made in the USA
